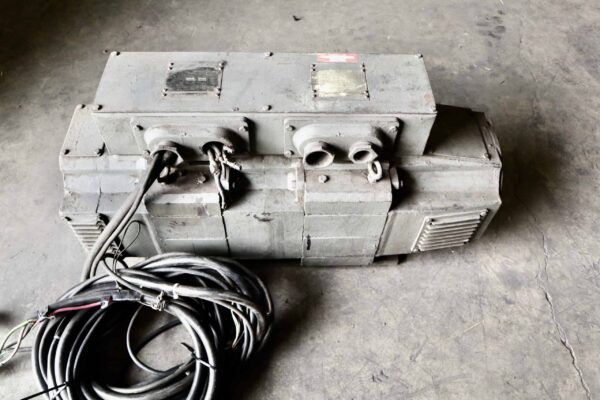

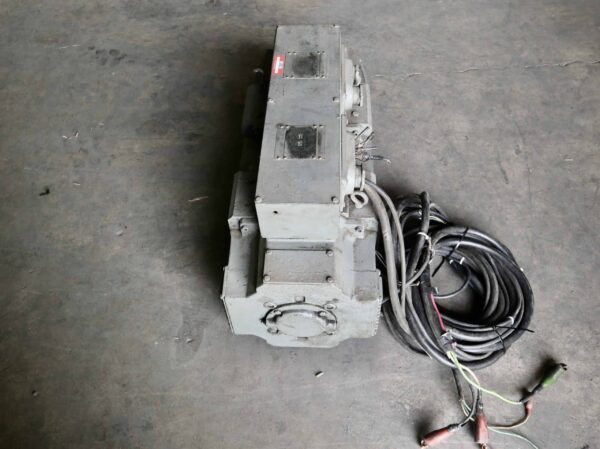

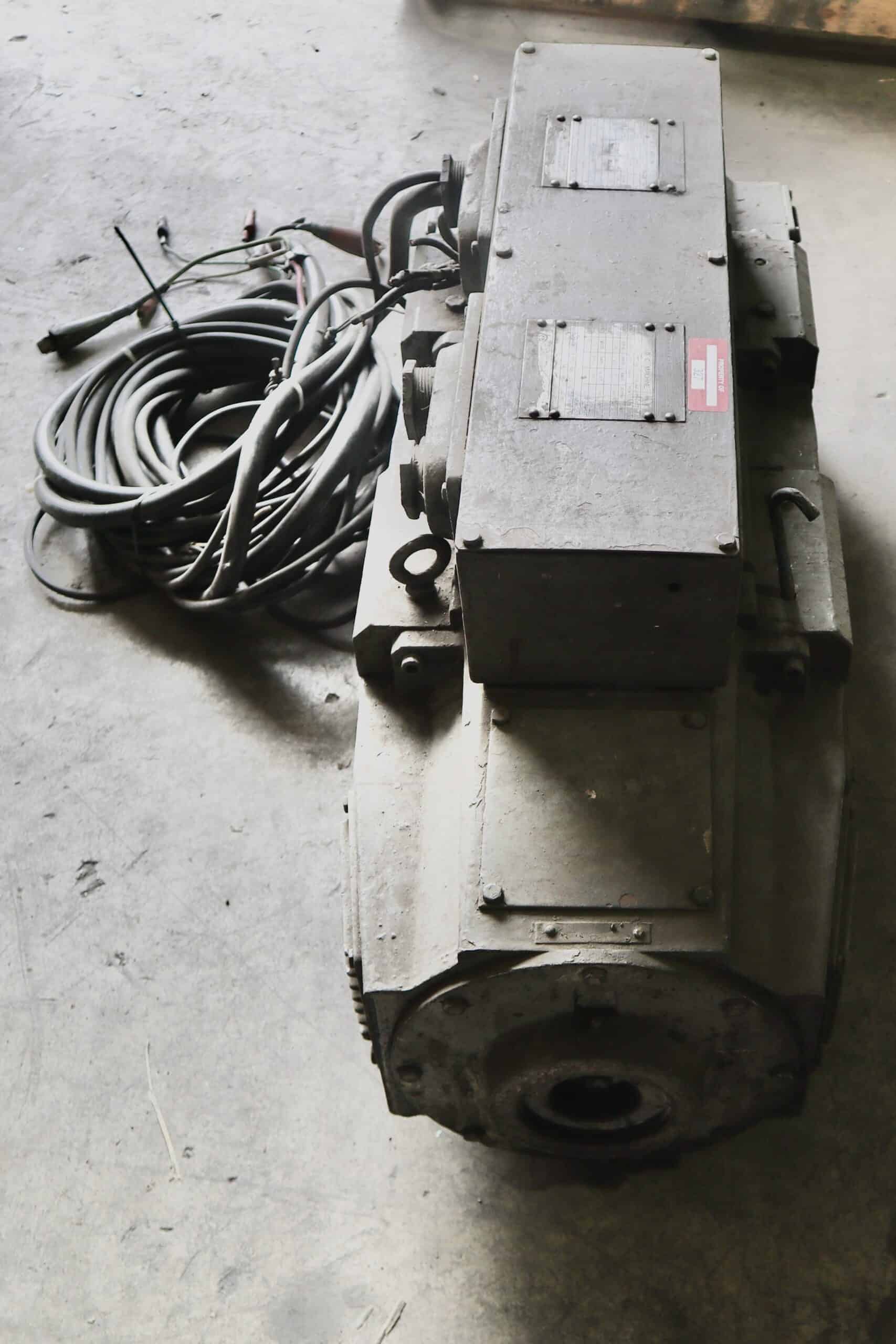

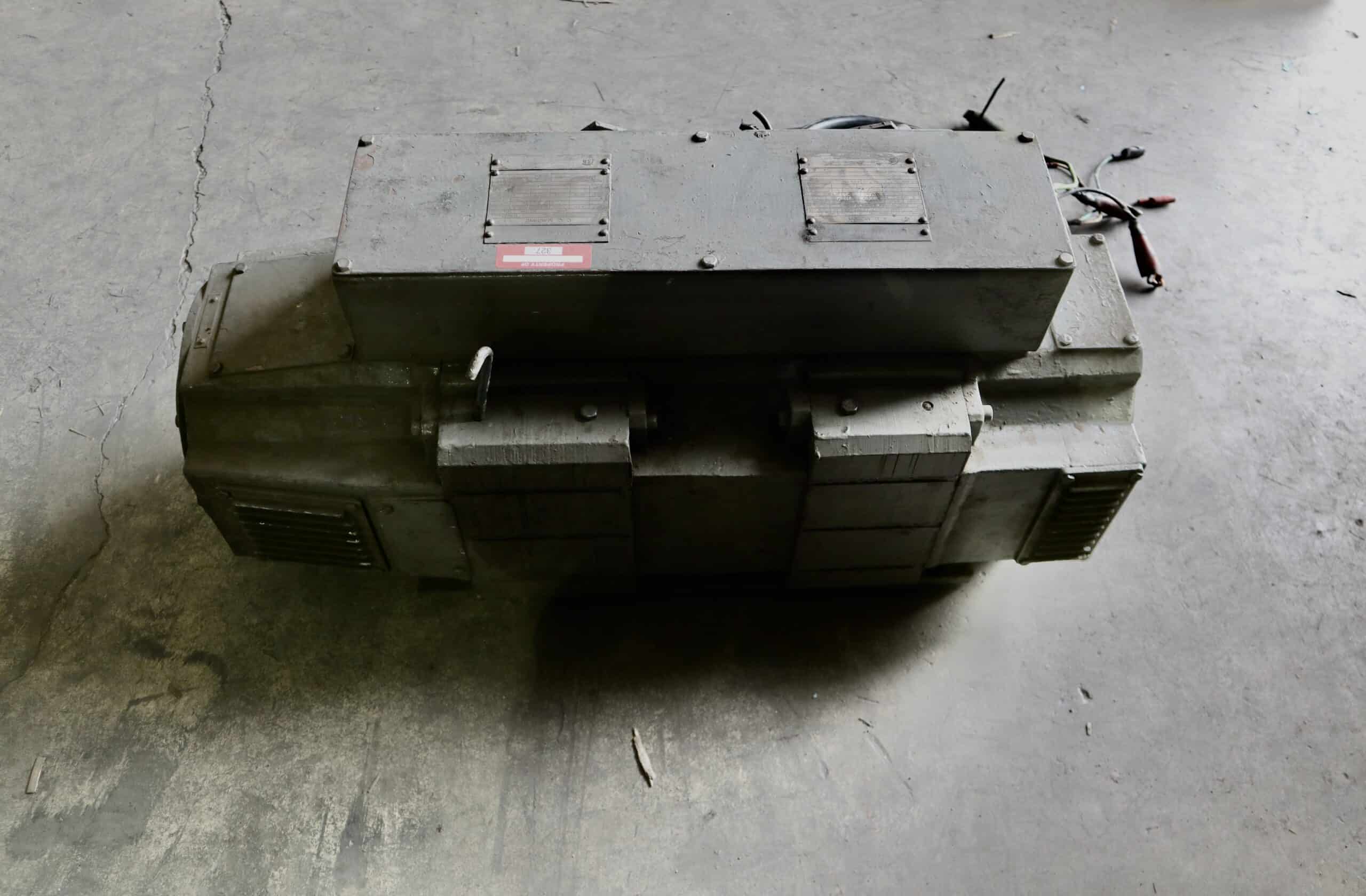

AO Smith Generator 18HP 10KW 1750RPM SVV5556 #327
Item # P.O.327 — AO Smith Generator 18HP 10KW 1750RPM SVV5556 #327
Renown Electric supplies a diverse selection of in-stock motors, elevator controls, elevator parts, AC & DC drives, and more. We also support equipment from major manufacturers such as General Electric, Otis, Westinghouse, WEG and many others.
If you cannot find the product you need, please contact us with your requirements.

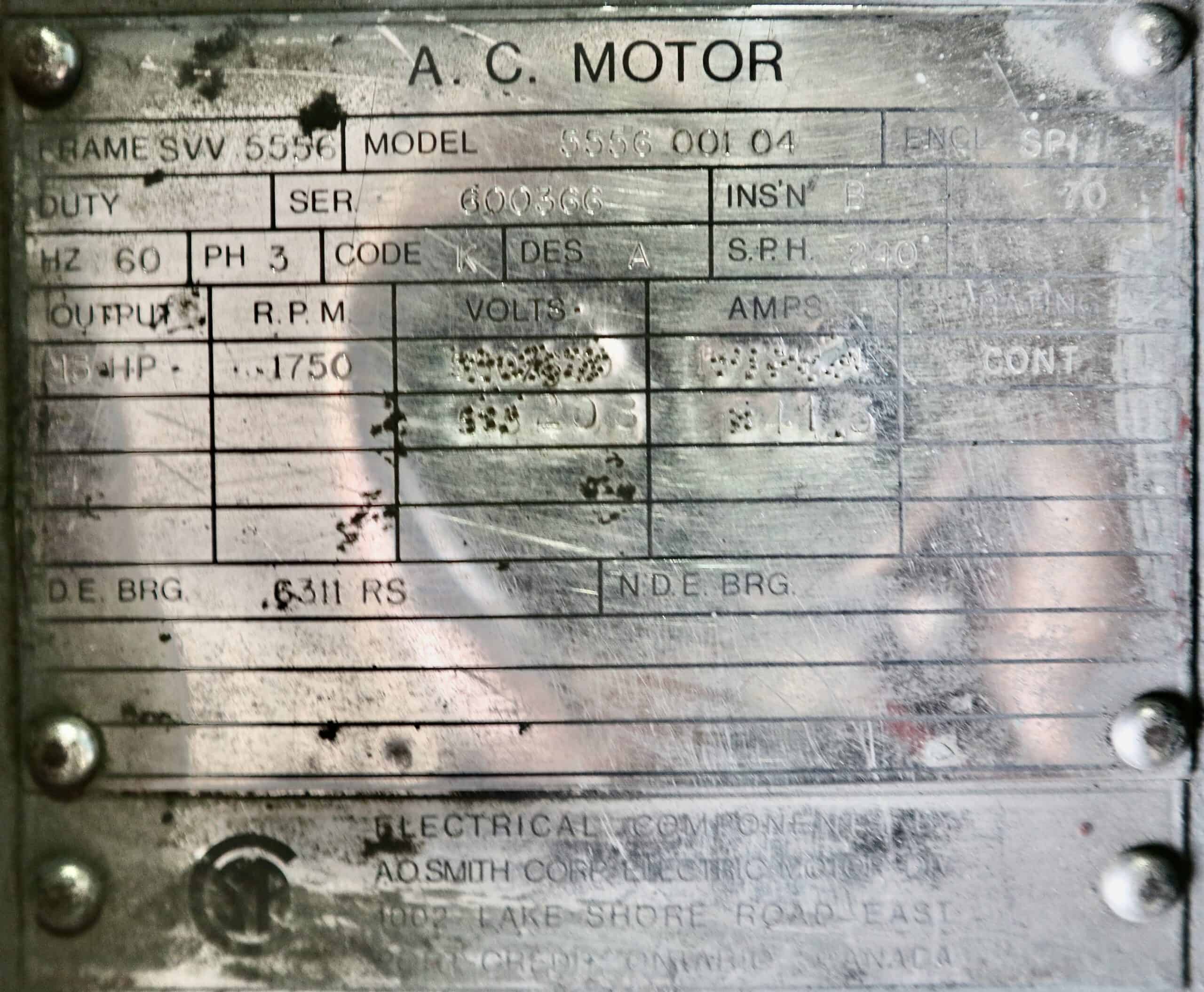

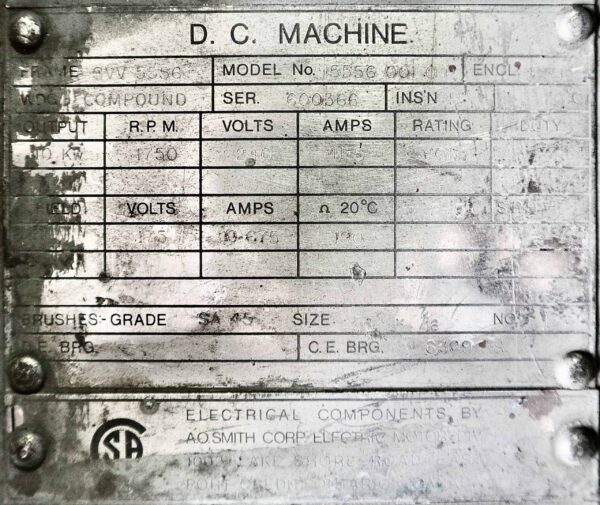

Motor Brands (MTR MFG)
A.O. Smith
KW
10
HP
15
RPMs
1750
Volts
208
Field Volt
175
Frame
SVV5556
Location
Bin 7
Model #
5556.001.04
Serial #
600366
Arm Volts
240
Amps
41.5
Arm Current
41.5
Field Current
0.675
Phase
3
Hertz
60
Ter. Box
F0
Ser Factor
CONT
Winding
Compound
Mounting
Foot
Drive End Bearing
6311 RS
Non Drive End Bearing
6309
Brush
SA45
Cover
Y
Field Res
120
