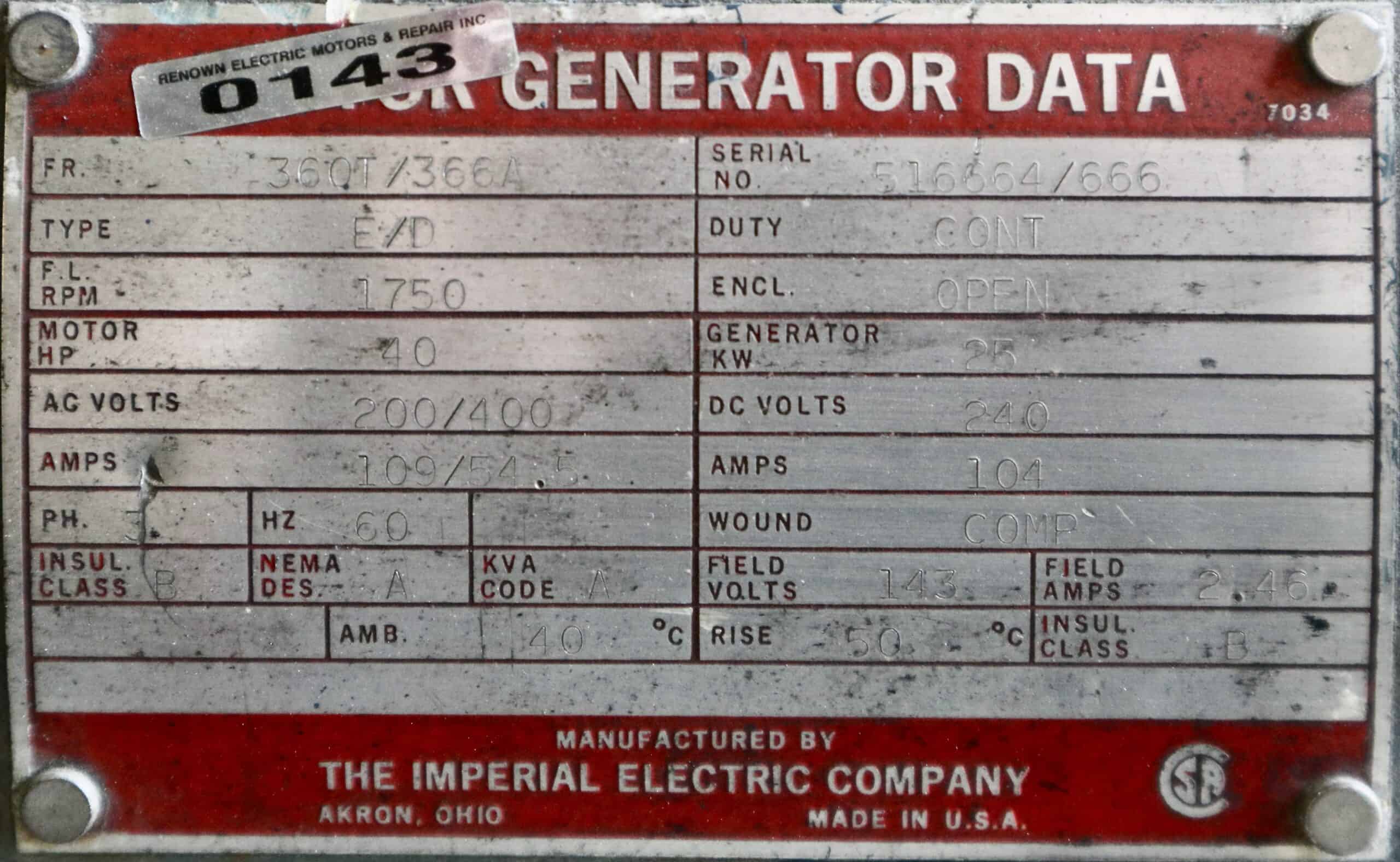

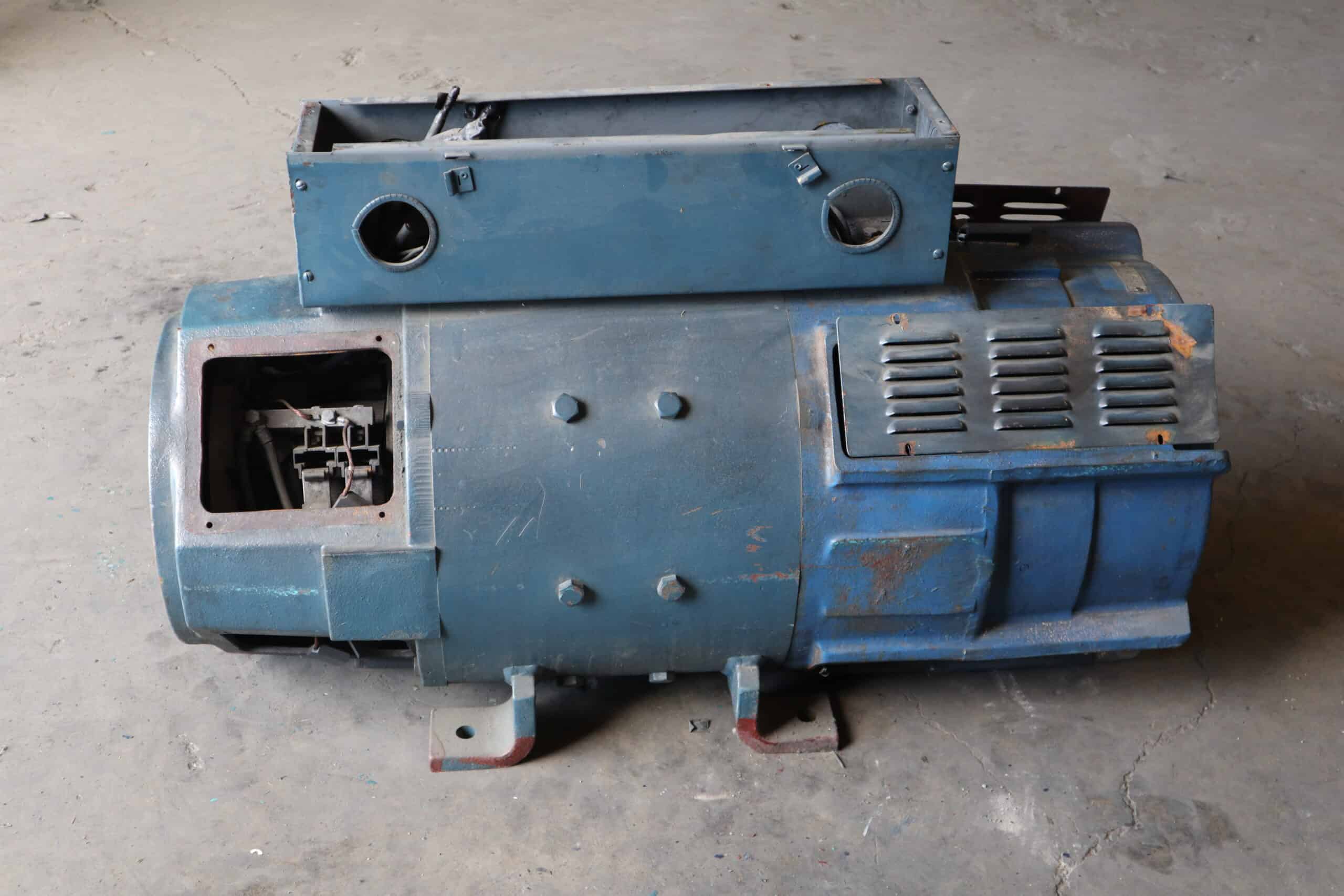

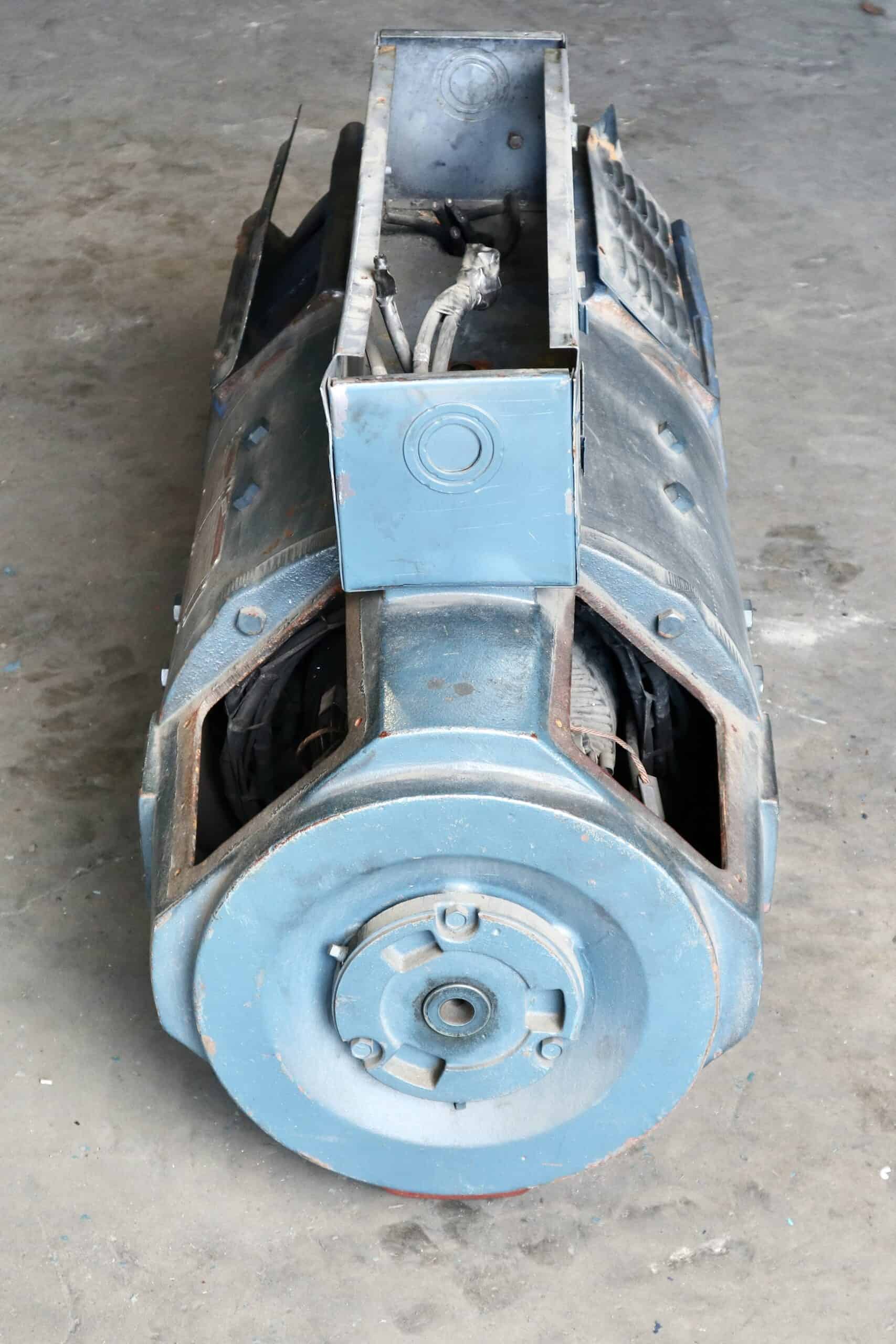

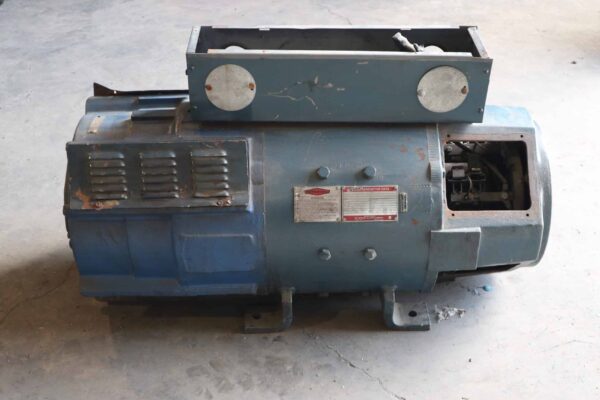

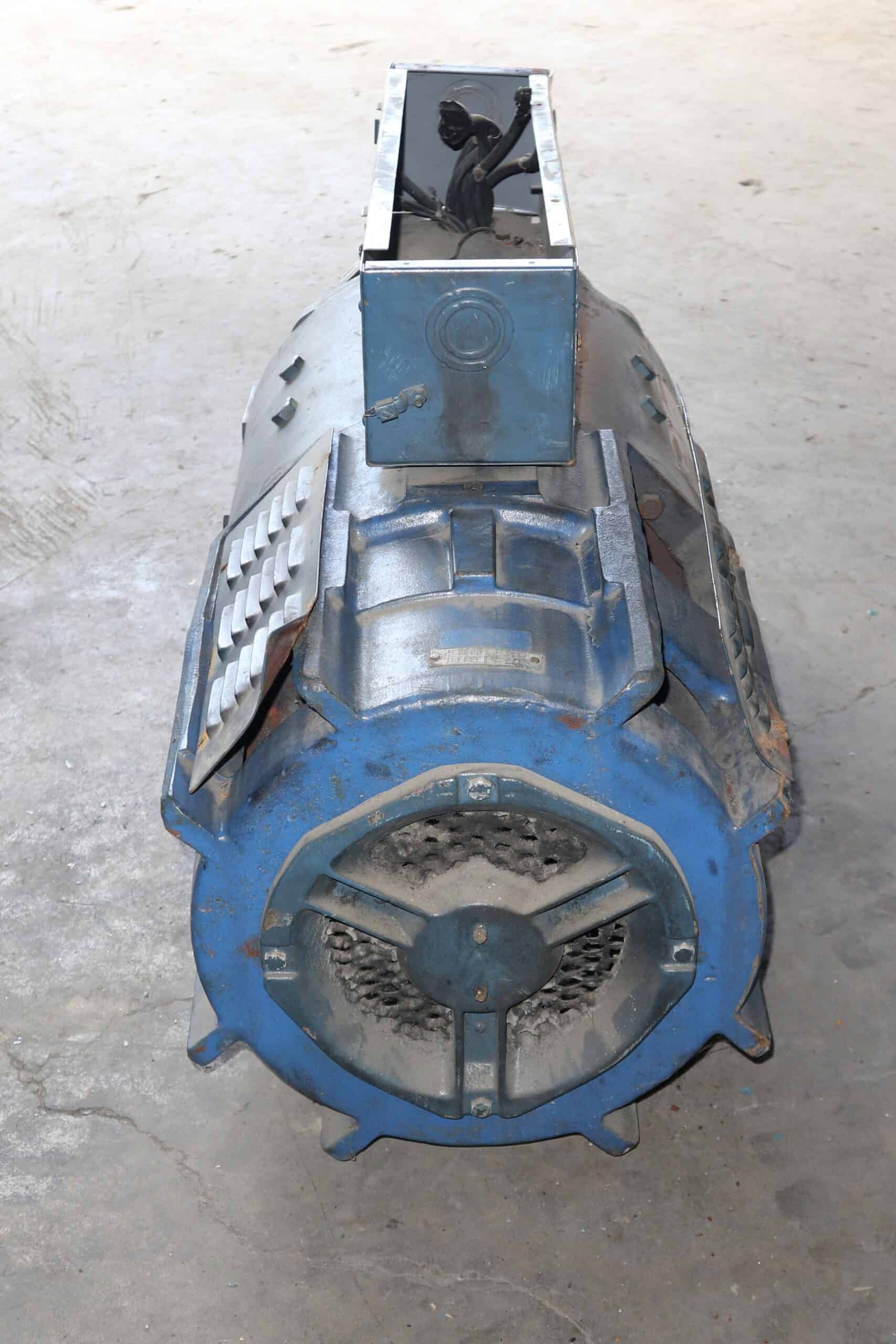

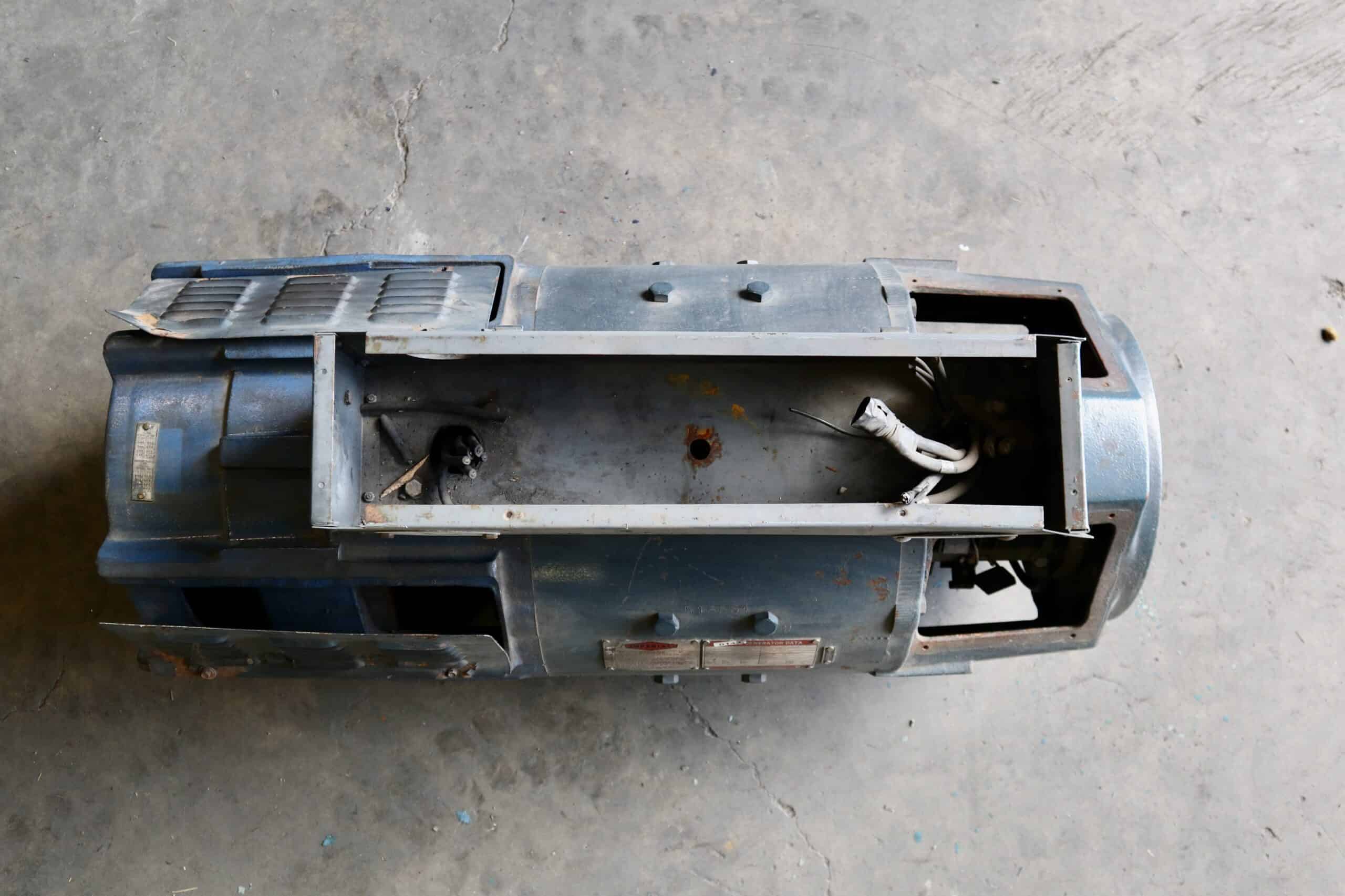

Imperial Electric Generator 40HP 25KW 1750RPM 360T/366A #0143
Item # 0143 — Imperial Electric Generator 40HP 25KW 1750RPM 360T/366A #0143
Renown Electric supplies a diverse selection of in-stock motors, elevator controls, elevator parts, AC & DC drives, and more. We also support equipment from major manufacturers such as General Electric, Otis, Westinghouse, WEG and many others.
If you cannot find the product you need, please contact us with your requirements.
Motor Brands (MTR MFG)
Imperial Electric
KW
25
HP
40
RPMs
1750
Volts
200/400
Field Volt
143
Frame
360T/366A
Location
Bin 84
Serial #
516664
Arm Volts
240
Amps
109/54
Arm Current
104
Field Current
2.46
Phase
3
Hertz
60
Type
E
Enclosure
ODP
Ter. Box
F0
Ambient Temp
40
Winding
Compound
Mounting
Foot
