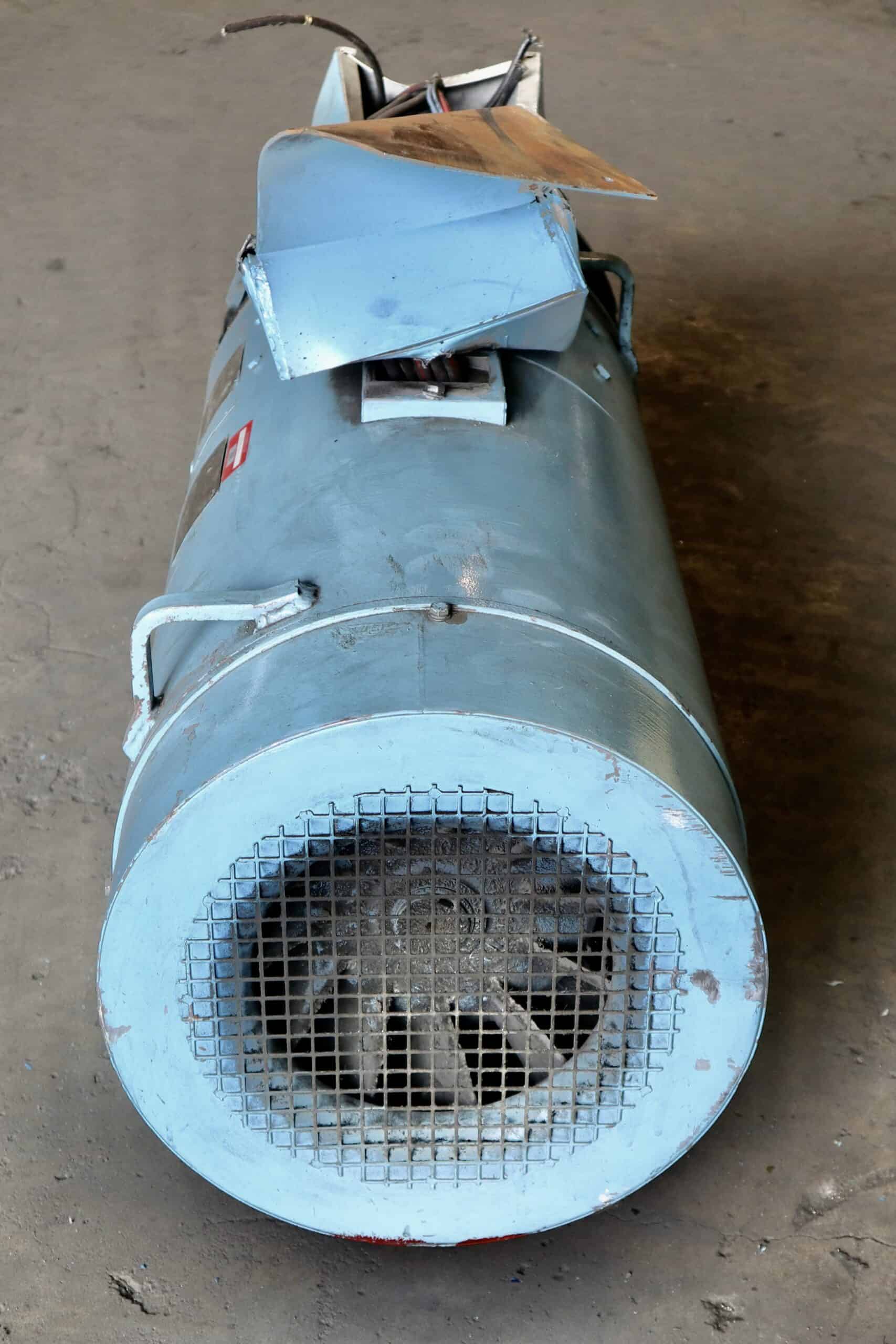

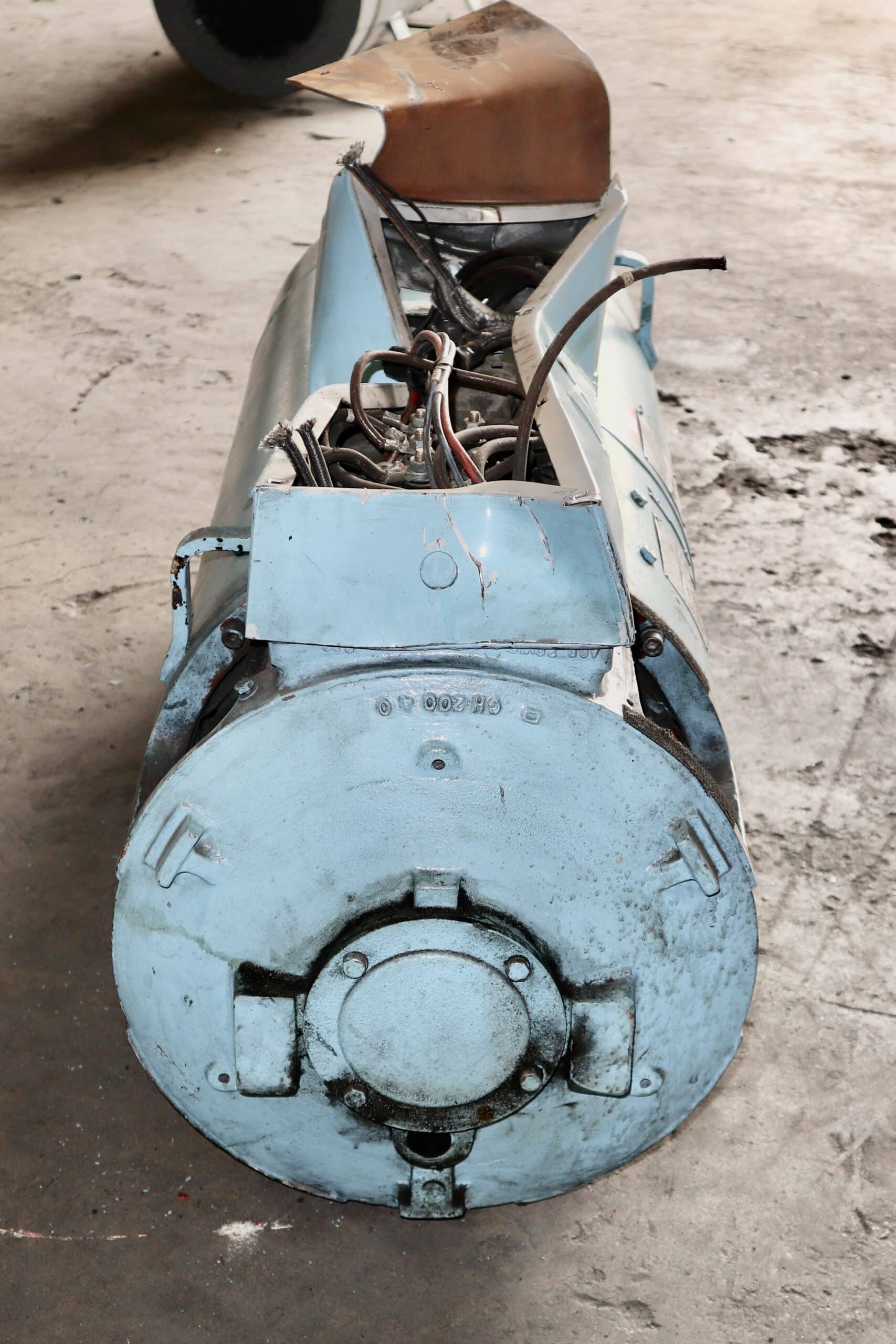

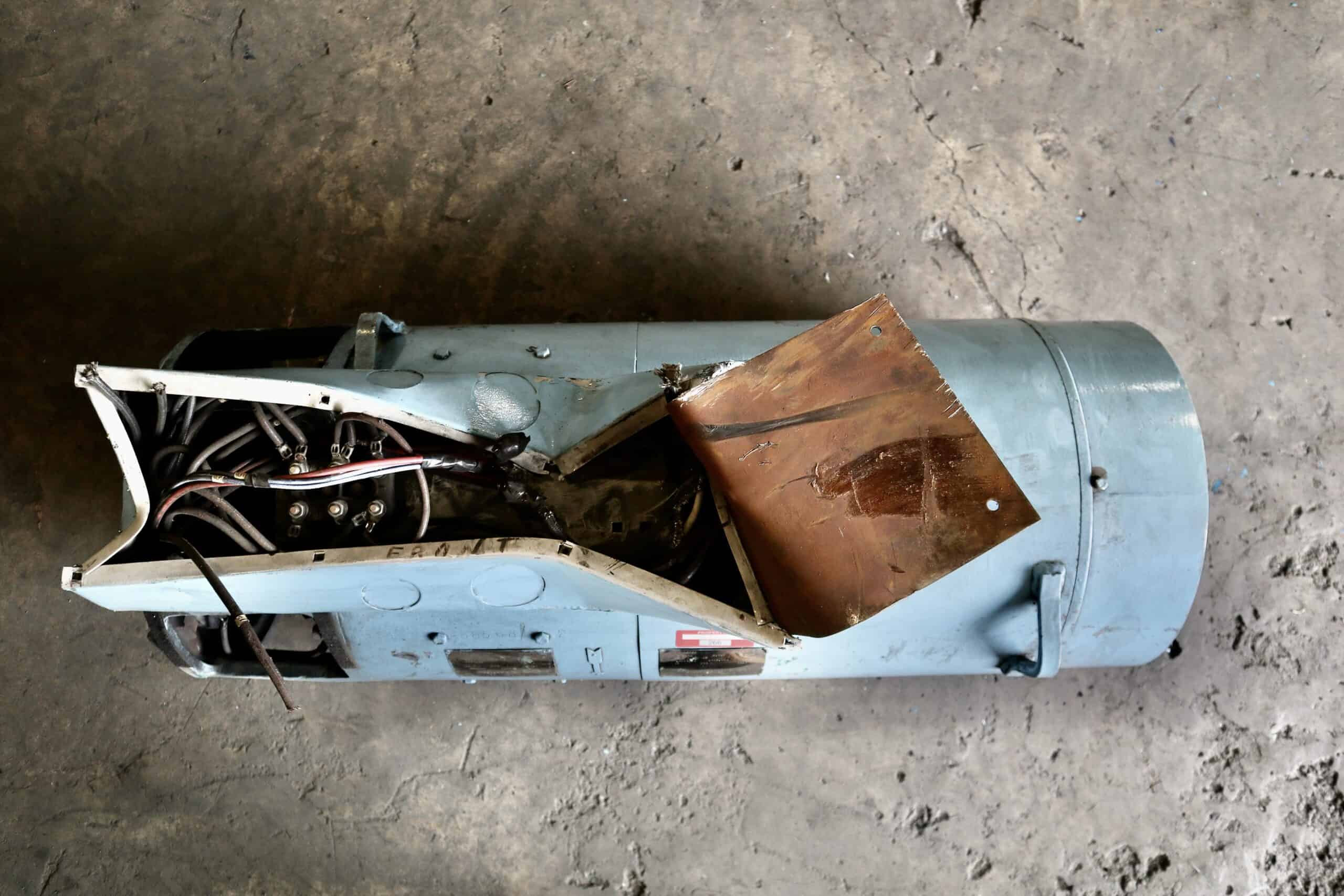

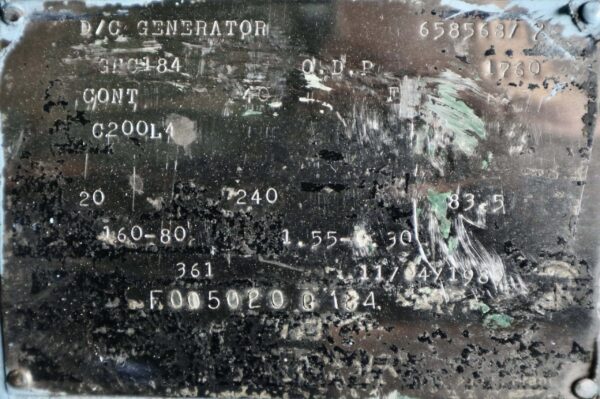

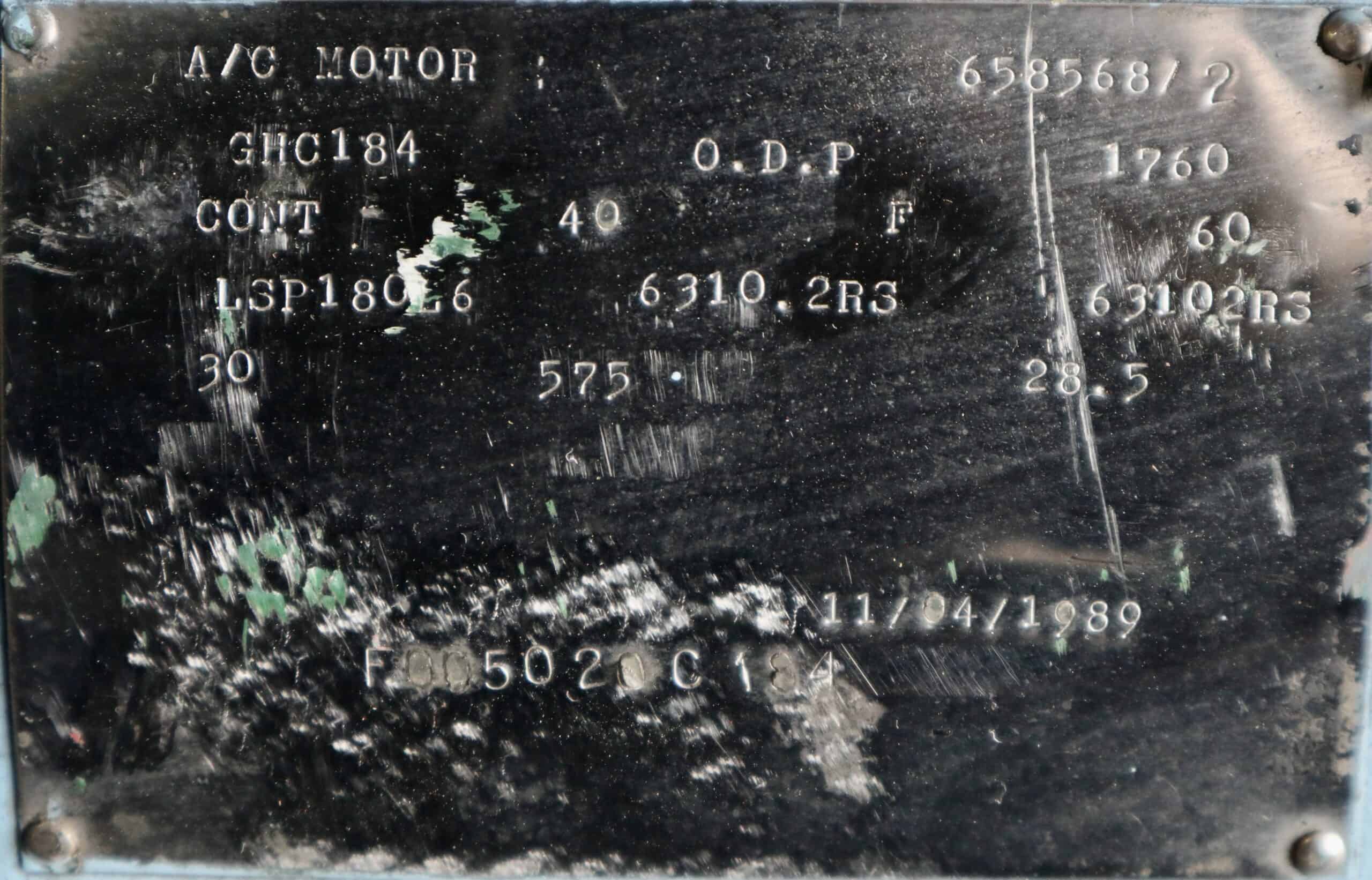

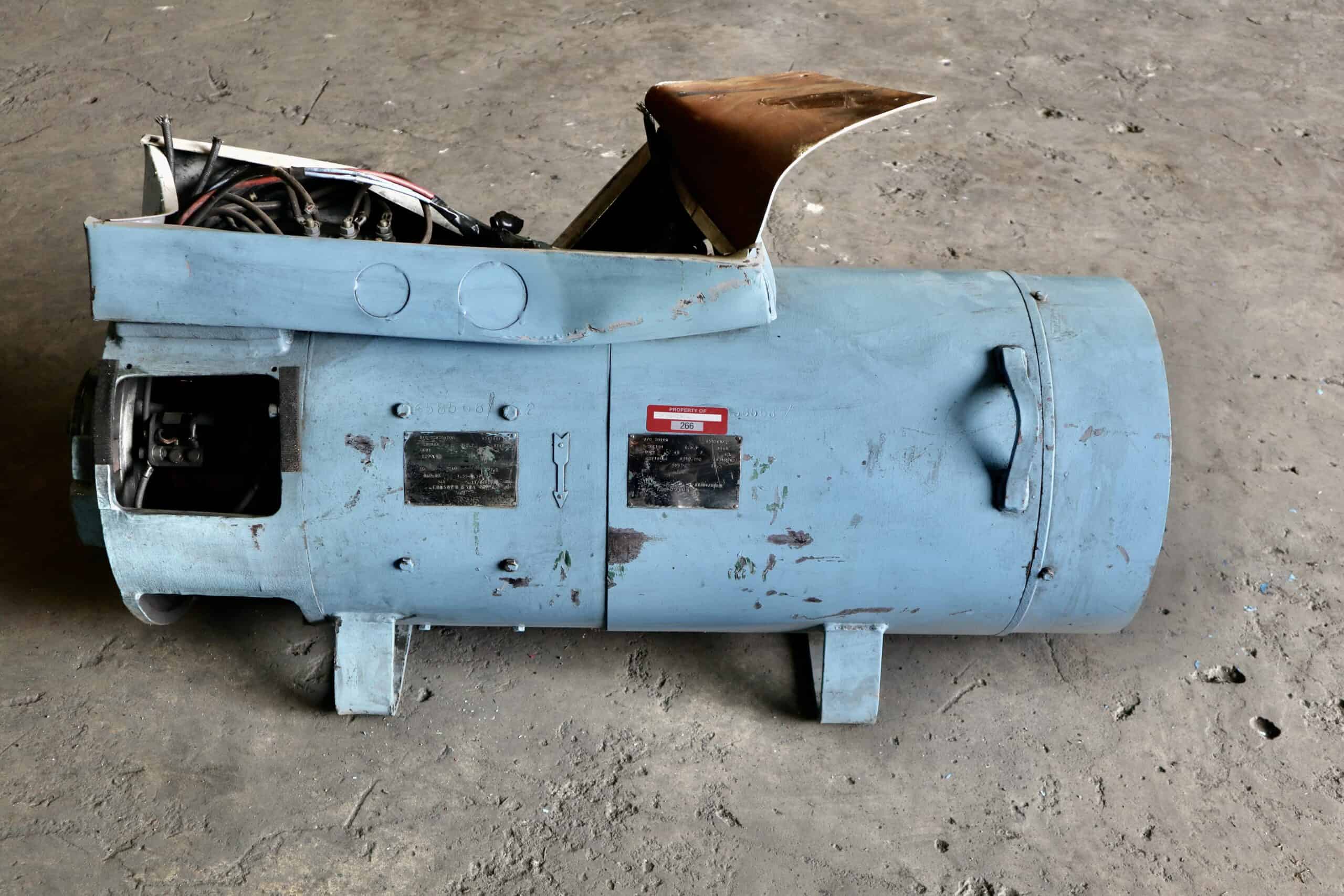

Leroy Somer Generator 30HP 20KW 1760RPM GHC184 #266
Item # P.O.266 — Leroy Somer Generator 30HP 20KW 1760RPM GHC184 #266
Renown Electric supplies a diverse selection of in-stock motors, elevator controls, elevator parts, AC & DC drives, and more. We also support equipment from major manufacturers such as General Electric, Otis, Westinghouse, WEG and many others.
If you cannot find the product you need, please contact us with your requirements.
Motor Brands (MTR MFG)
Leroy-Somer
KW
20
HP
30
RPMs
1760
Volts
575
Field Volt
160-80
Frame
GHC184
Location
Bin 60
Model #
LSP180L6 / C200L4
Serial #
658568/2
Arm Volts
240
Amps
28.5
Arm Current
83.5
Field Current
1.55-0.30
Phase
3
Hertz
60
CAT
F005020 G184
Enclosure
ODP
Ter. Box
F0
Ser Factor
CONT
Ambient Temp
40
Mounting
Foot
Drive End Bearing
6310 2RS
Non Drive End Bearing
6310 2RS
Brush
361 11/04/1989
