Weg 20HP 15KW 575V 1765RPM 256T AC Motor #0108

Weg 20HP 15KW 575V 1765RPM 256T AC Motor #0108

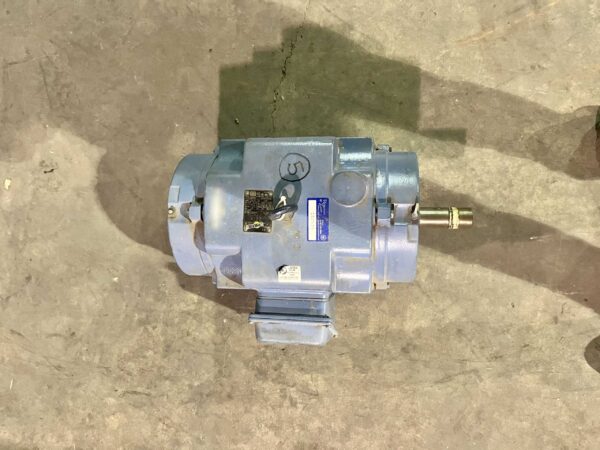

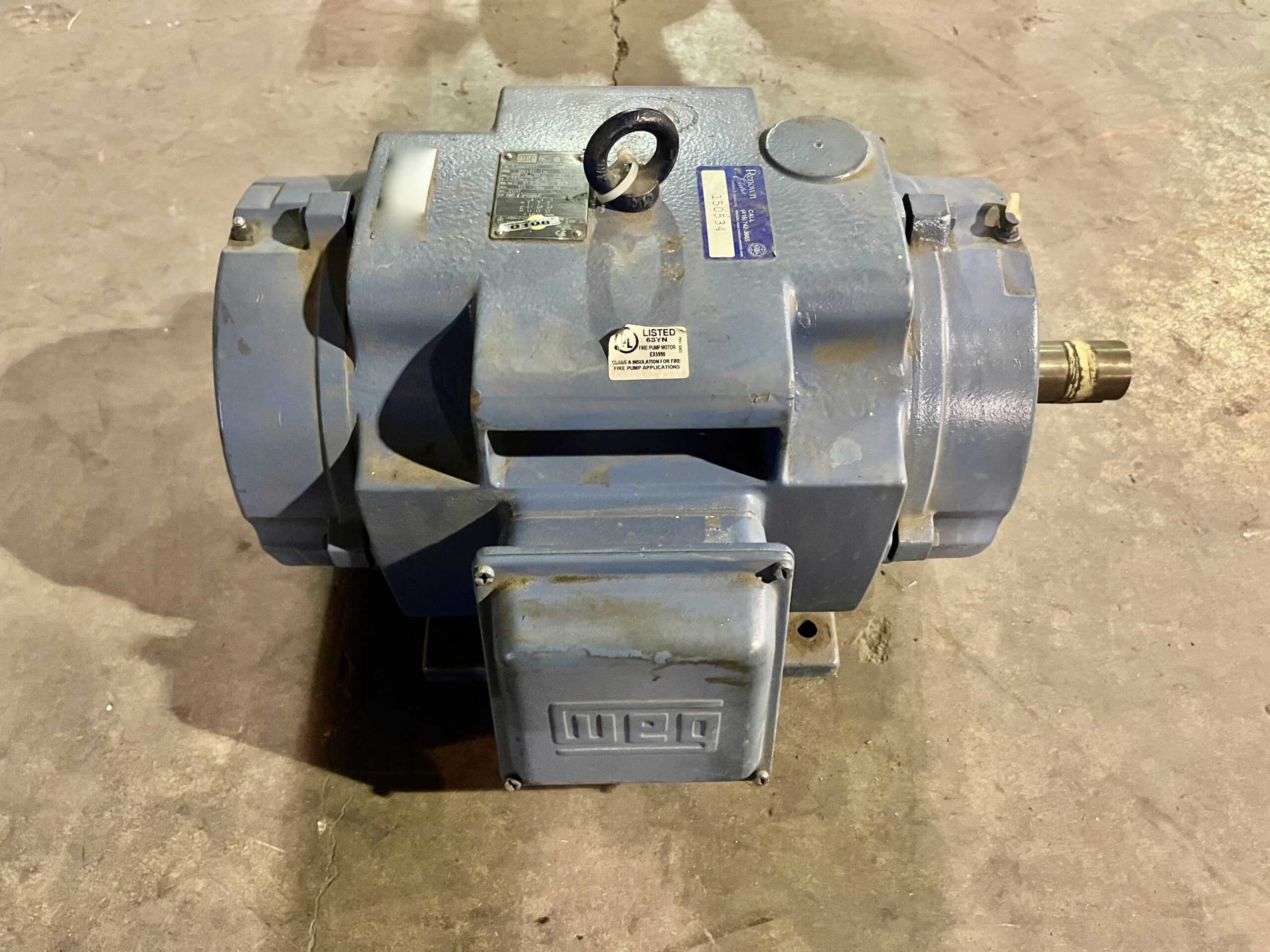

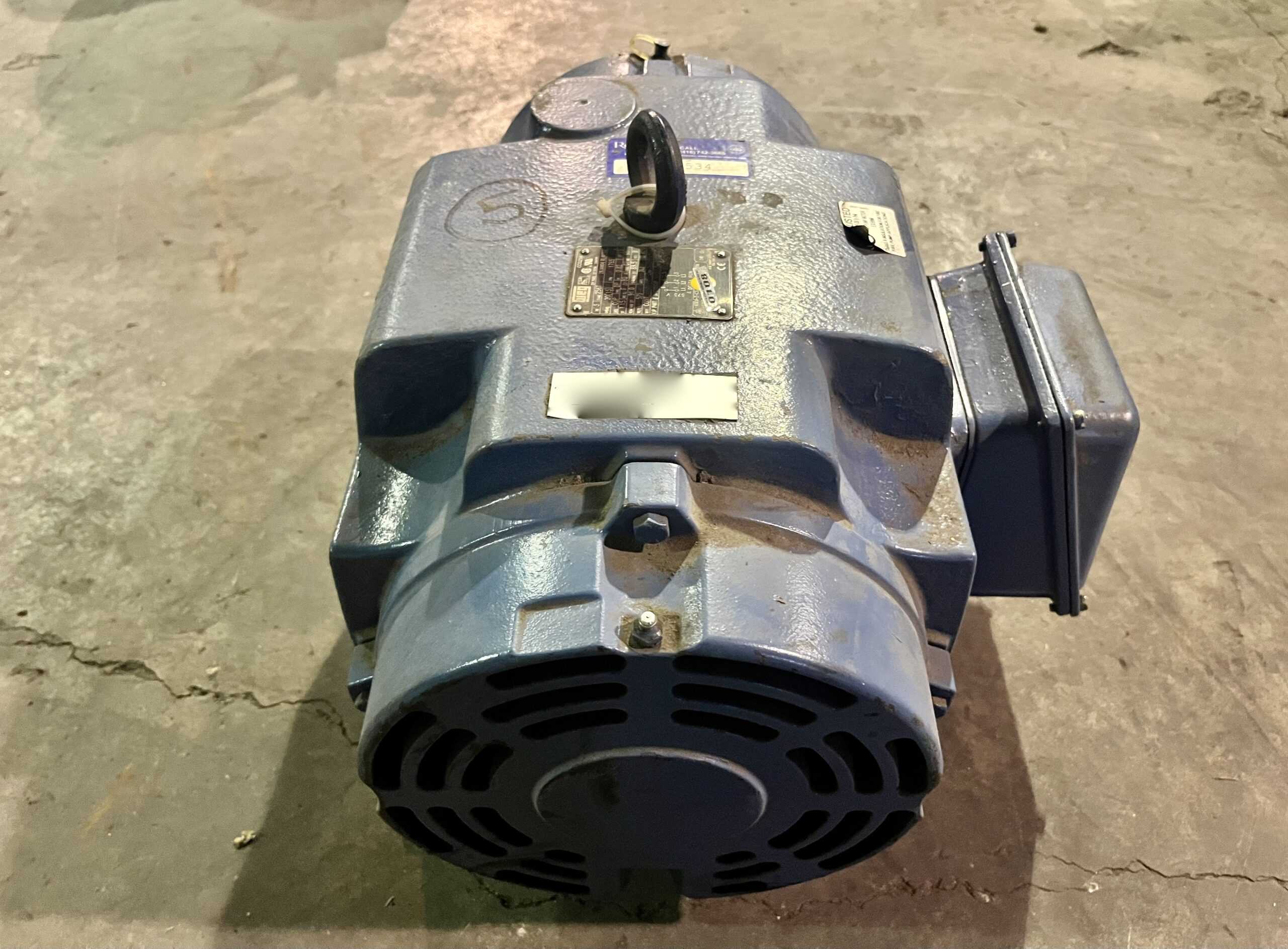

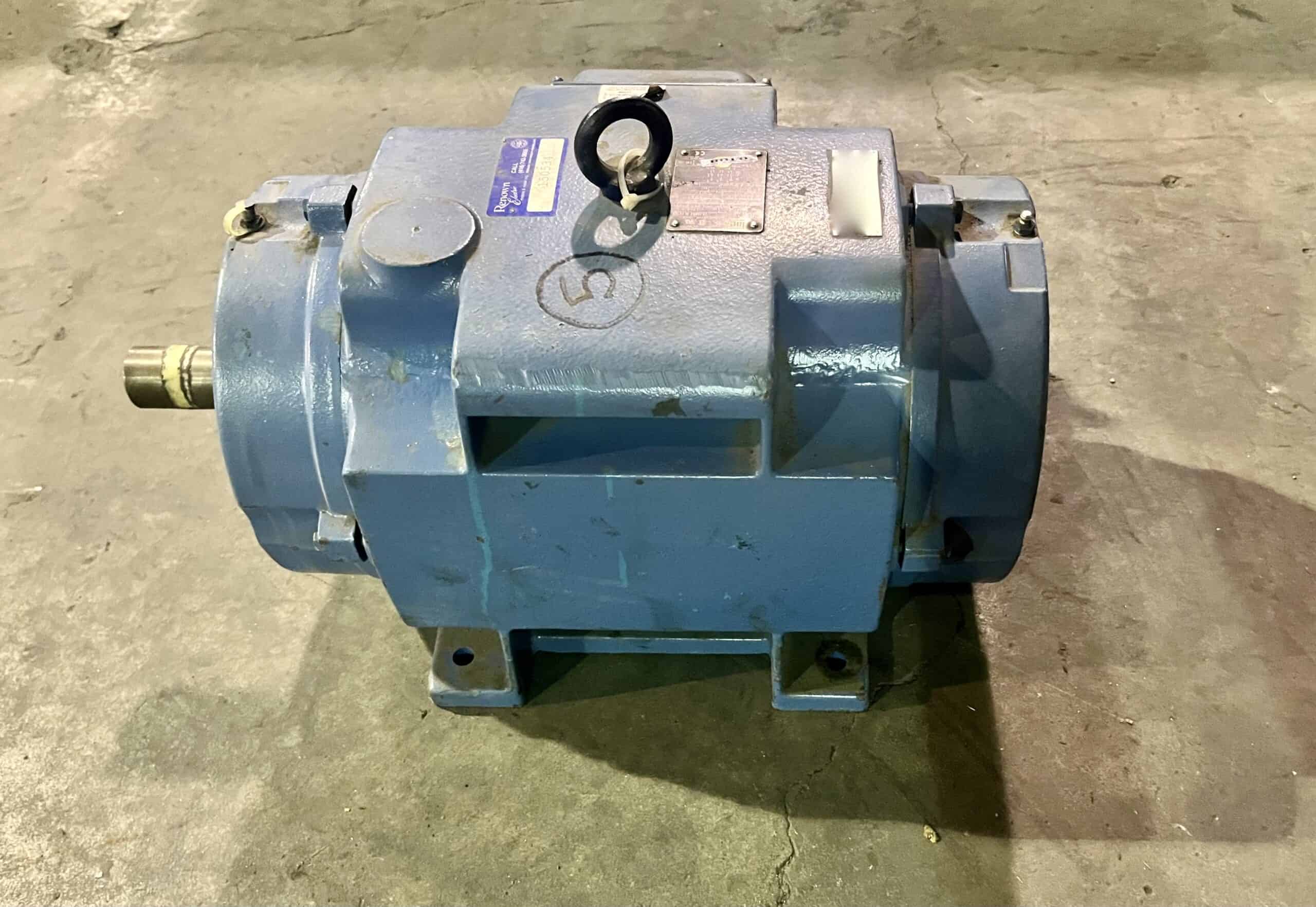

Item # 0108 — Weg 20HP 15KW 575V 1765RPM 256T AC Motor #0108

Renown Electric supplies a diverse selection of in-stock motors, elevator controls, elevator parts, AC & DC drives, and more. We also support equipment from major manufacturers such as General Electric, Otis, Westinghouse, WEG and many others.

If you cannot find the product you need, please contact us with your requirements.

Add to Quote

QTY

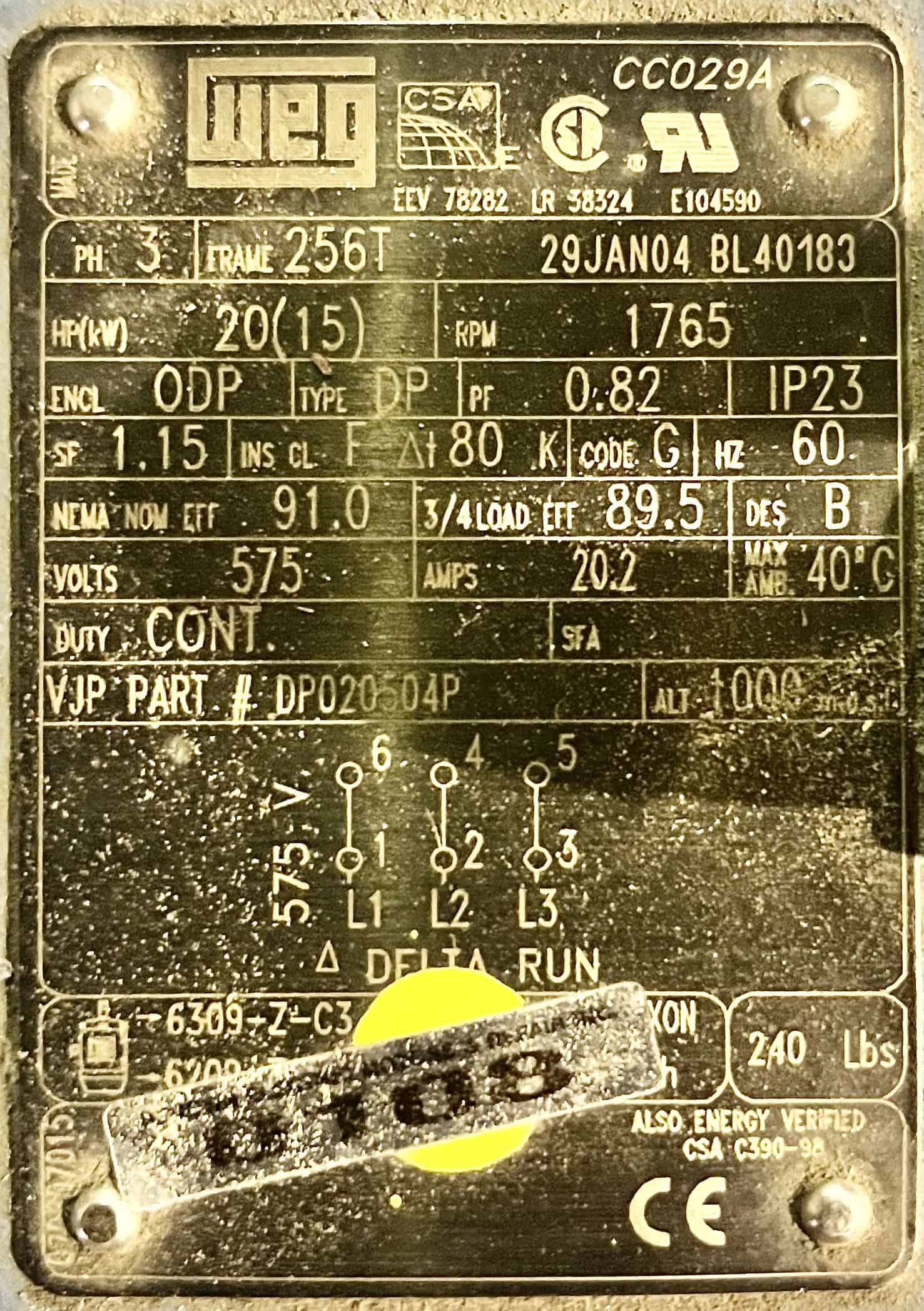

Specifications

Motor Brands (MTR MFG)

WEG

KW

15

HP

20

RPMs

1765

Volts

575

Frame

256T

Location

SS1

Model #

CC029A

Serial #

BL40183

Amps

20.2

Phase

3

Hertz

60

Type

DP

CAT

DP020504P

Enclosure

ODP

Ser Factor

1.15

Ambient Temp

40

Design

B

Efficiency

91.0

Mounting

Foot

Drive End Bearing

6309-Z-C3

Non Drive End Bearing

6209-

Weight

240Lbs
